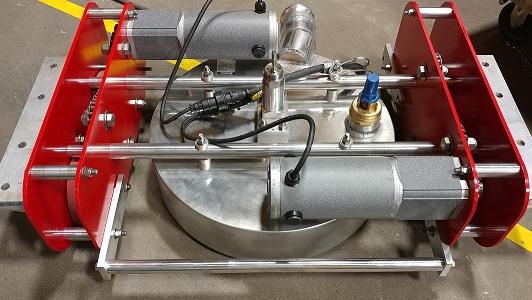

DC Powered wireless remote controlled crawler.  Vacuum assist magnetically attached, steel surface preparation robot with 18” cut path.   All aluminum construction, with urethane treaded wheels, steel chain drive and all stainless hardware.Nema 4x Polycarbonate control box 115/230v AC input.

Specifications:

Motors: (2) 1/3hp 90 volt brushed DC operating at 5 amps each maximumIP67 rated

Gear ratio: 90:1 planetary reduction with 2:1 chain drive reduction.

Wheel Diameter: 6” (15 cm) polyurethane tread

Maximum speed: 30’ (9 m) per minute

Steering: Skid steer Zero turn radius

Magnet assist: (2) outboard mounted Halbach arrays in aluminum housing providing 500lbf each at 7/16” (1cm) from steel surface.

Powerhead:  Available in sizes 10” (25 cm) 12” (30 cm)18” (45cm) diameter,up to 20 nozzles, self-rotating, 6-13 gpm, or 24 – 48 Lpmcapacity.

Operating pressure: up to 55,000 psi. 40,000 or 2750 -3800 bar.

Cutting speed: 400 – 800 sqft/hour,  (37 – 75 m) consider all factors:  pressure and flow from UHP pump, length of run, thickness of coatings, operator experience.

Wireless: 2.4Ghz up to 500’  (152m) line of sight.

Wired: Tether length as needed up to 400’  (122m). 12awg 4 conductor SOOW In 200 ft sections IP68 connections

Vacuum connection: 3” cam & groove.

UHP connection: either M14 (7/8” – 14), or P-style autoclave 8mm standard uhp hose.​

55Kpsi Wall Crawler Robot

P/N N1000
